2 Core Flat Flexible 2192Y
2 Core Round Flexible 2182Y
2 Core Round Flexible 3182Y
3 Core Round Flexible 2183Y
3 Core Round Flexible 3183Y
4 Core Round Flexible 3184Y

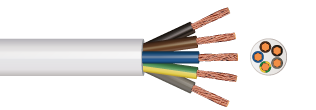

5 Core Round Flexible 3185Y
3 Core Round Flexible LSZH 3183B
3 Core Arctic Flexible 3183YAG
2 Core Heat Resistant Flexible 3092Y
3 Core Heat Resistant Flexible 3093Y
4 Core Heat Resistant Flexible 3094Y
5 Core Heat Resistant Flexible 3095Y
3 Core Heat Resistant Butyl Flexible 3183TQ
3 Core Rubber Flexible 3183TRS
3 Core Braided Flex 2043Y
Light duty cable for use in domestic premises, kitchens and offices. For use with light portable appliances such as radios, table lamps and office machines.
Certification: BASEC Approved, HAR, ISO 9001.
Standard: BS 6500
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| 2192Y0.5 | 0.5 | 3.0 x 4.9 | 3 | 39 | Black, White, Gold | Br,Bl | 5, 7.5, 10, 50, 100 | Lamps and small appliances needing no earth |
| 2192Y0.75 | 0.75 | 3.2 x 5.2 | 6 | 26 | Black, White | Br,Bl | 5, 10, 50, 100 | Lamps and small appliances needing no earth |
Light duty cable for use in domestic premises, kitchens and offices. For use with light portable appliances such as radios, table lamps and office machines.
Certification: BASEC Approved, HAR, ISO 9001.
Standards: BS 6500, EN 50525-2-11
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| 2182Y0.5 | 0.5 | 5 | 3 | 39 | Black, White | Br,Bl | 50,100 | Light duty appliances needing no earth |
| 2182Y0.75 | 0.75 | 5.5 | 6 | 26 | Black, White | Br,Bl | 5, 10, 50, 100 | Light duty appliances needing no earth |
For use in household appliances such as washing machines, spin dryers and refrigerators. Generally unsuitable for outdoor use or industrial applications.
Certification: BASEC Approved, HAR, ISO 9001.
Standard: BS EN 50525-2-11
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| 3182Y0.75 | 0.75 | 6.3 | 6 | 26 | Black, White | Br,Bl | 7.5, 10, 16.5, 50, 100 | Power tools and small appliances needing no earth |
| 3182Y1.0 | 1 | 6.6 | 10 | 19.5 | Black, White, Orange | Br,Bl | 10, 25, 50, 100 | Power tools and medium appliances needing no earth |
| 3182Y1.5 | 1.5 | 7.4 | 16 | 13.3 | Black, White | Br,Bl | 50, 100 |
Light duty cable for use in domestic premises, kitchens and offices. For use with light portable appliances such as radios, table lamps and office machines.
Certification: BASEC Approved, HAR, ISO 9001.
Standard: BS EN 50525-2-11
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| 2183Y0.5 | 0.5 | 5.3 | 3 | 39 | White, Black, Gold | Br,Bl,G/Y | 5, 10, 50, 100 | Light duty appliances |
| 2183Y0.75 | 0.75 | 5.8 | 6 | 26 | White | Br,Bl,G/Y | 50,100 |
For use in household appliances such as washing machines, spin dryers and refrigerators. Generally unsuitable for outdoor use or industrial applications.
Certification: BASEC Approved, HAR, ISO 9001.
Standard: BS EN 50525-2-11
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| 3183Y0.75 | 0.75 | 6.7 | 6 | 26 | Black, White | Br,Bl,G/Y | 5, 7.5, 10, 16.5, 50, 100 | Drills |
| 3183Y1.0 | 1 | 7 | 10 | 19.5 | Black, White | Br,Bl,G/Y | 5, 10, 25, 50, 100 | Kettles and toasters |
| 3183Y1.5 | 1.5 | 8.1 | 16 | 13.3 | Black, White, Orange | Br,Bl,G/Y | 2, 5, 10, 25, 50, 100 | Washing machines and extension leads |
| 3183Y2.5 | 2.5 | 9.9 | 25 | 7.98 | Black, White | Br,Bl,G/Y | 50, 100 |
For use in household appliances such as washing machines, spin dryers and refrigerators. Generally unsuitable for outdoor use or industrial applications.
Certification: BASEC Approved, HAR, ISO 9001.
Standard: BS EN 50525-2-11
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| 3184Y0.75 | 0.75 | 7.3 | 6 | 26 | White | Br,Bl,Bk,G/Y | 5, 10, 25, 50, 100 | Heating controls |
| 3184Y1.0 | 1 | 7.9 | 10 | 19.5 | Black, White | Br,Bl,Bk,G/Y | 5, 10, 25, 50, 100 | Heating controls |
| 3184Y1.5 | 1.5 | 9 | 16 | 13.3 | Black, White | Br,Bl,Bk,G/Y | 50, 100 | |
| 3184Y2.5 | 2.5 | 10.8 | 25 | 7.98 | White | Br,Bl,Bk,G/Y | 50, 100 |
For use in household appliances such as washing machines, spin dryers and refrigerators. Generally unsuitable for outdoor use or industrial applications.
Certification: BASEC Approved, HAR, ISO 9001.
Standard: BS EN 50525-2-11
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| 3185Y0.75 | 0.75 | 8.1 | 6 | 26 | White | Br,Bl,Bk,G/Y,Gry | 5, 10, 25, 50, 100 | Heating controls |
| 3185Y1.0 | 1 | 8.6 | 10 | 19.5 | White | Br,Bl,Bk,G/Y,Gry | 5, 10, 25, 50, 100 | Heating controls |
| 3185Y1.5 | 1.5 | 10 | 16 | 13.3 | White | Br,Bl,Bk,G/Y,Gry | 50, 100 | |
| 3185Y2.5 | 2.5 | 12 | 25 | 7.98 | White | Br,Bl,Bk,G/Y,Gry | 50, 100 |
Low smoke zero halogen wiring for use in household appliances such as washing machines, spin dryers and refrigerators. Generally unsuitable for outdoor use or industrial applications.
Certification: BASEC Approved, HAR, ISO 9001.
Standards: EN 50525-3-11
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| 3183B0.75 | 0.75 | 6.7 | 13 | 26 | White | Br,Bl,G/Y | 100 | Drills |
Designed to withstand severe external temperatures remaining flexible at temperatures as low as -40°C. Arctic Grade PVC mains cords manufactured to BS7919 will remain flexible at temperatures down to minus 40°C making them particularly suitable for outdoor applications and for use where flexibility is required at sub zero temperatures. At normal temperatures the cable is very limp and flexible, offering some of the characteristics usually found in elastomeric cables.
Certification: BASEC Approved, HAR, ISO 9001.
Standards: BS 6004:2012
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| 3183YA1.5 | 1.5 | – | 20 | 13.3 | Blue, Yellow | Br,Bl,G/Y | 10, 25, 100 | Transformers and site lighting |
| 3183YA2.5 | 2.5 | – | 27 | 7.98 | Blue, Yellow | Br,Bl,G/Y | 10, 50, 100 | Caravans and boats |
2 core heat resistant flexible cable, designed for internal wiring or supply cords to electrical apparatus. Suitable for installation in high temperature environments up to +90°C where there is low risk of mechanical stresses. Not suitable for outdoor use, or laying on trays or in racks.
Certification: BASEC Approved, HAR, ISO 9001.
Standards: BS EN 50525-2-11
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| 3092Y0.75 | 0.75 | 6.3 | 6 | 56.9 | White | Br,Bl | 1, 10 | Pendant lamps – high heat |
Change ‘Supply leads for use as…’ text to ‘3 core heat resistant flexible cable, designed for internal wiring or supply cords to electrical apparatus. Suitable for installation in high temperature environments up to +90°C where there is low risk of mechanical stresses. Not suitable for outdoor use, or laying on trays or in racks.
Certification: HAR.
Standards: BS 6500, BS 7919:2001, HD 21.12 S1
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| 3093Y0.75 | 0.75 | 6.7 | 6 | 65.7 | White | Br,Bl,G/Y | 5, 10, 50, 100 | Small appliances |
| 3093Y1.0 | 1 | 7 | 10 | 77.5 | White | Br,Bl,G/Y | 50, 100 | |
| 3093Y1.5 | 1.5 | 8.1 | 16 | 106 | White | Br,Bl,G/Y | 5, 10, 50, 100 | Storage heaters and heating elements |
| 3093Y2.5 | 2.5 | 9.7 | 25 | 164.6 | White | Br,Bl,G/Y | 3, 5, 25, 50, 100 | Electric hobs and storage heaters |
4 core heat resistant flexible cable, designed for internal wiring or supply cords to electrical apparatus. Suitable for installation in high temperature environments up to +90°C where there is low risk of mechanical stresses. Not suitable for outdoor use, or laying on trays or in racks.
Certification: BASEC Approved, HAR.
Standards: BS EN 50525-2-11
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| 3094Y0.75 | 0.75 | 7.3 | 6 | 82.5 | White | Br,Bl,Bk,G/Y | 50, 100 | Storage heaters and emersion heaters |
| 3094Y1.0 | 1 | 7.9 | 10 | 100.2 | White | Br,Bl,Bk,G/Y | 100 |
5 core heat resistant flexible cable, designed for internal wiring or supply cords to electrical apparatus. Suitable for installation in high temperature environments up to +90°C where there is low risk of mechanical stresses. Not suitable for outdoor use, or laying on trays or in racks.
Certification: BASEC Approved, HAR.
Standards: BS EN 50525-2-11
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| 3095Y0.75 | 0.75 | 8.1 | 6 | 101.,9 | White | Br,Bl,Bk,G/Y,Gry | 50, 100 | Central heating controls |
Flexible cords suitable for use in domestic premises, kitchens and offices. Also suitable for use in hot situations such as immersion heaters. Good resistance to oil and grease.
Certification: ISO 9001.
Standard: EN 50525-2-21
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| 3183TQ0.75 | 0.75 | White | Br,Bl,G/Y | 5, 10, 15, 25, 50 | ||||
| 3183TQ1.0 | 1 | White | Br,Bl,G/Y | 5, 10, 15, 25, 50 | ||||
| 3183TQ1.5 | 1.5 | 8.85 | 13.3 | White | Br,Bl,G/Y | 5, 10, 15, 25, 50 | Cookers and hobs | |
| 3183TQ2.5 | 2.5 | 10.5 | 7.98 | White | Br,Bl,G/Y | 1, 15, 50 | Hobs and storage heaters |
For use in household appliances such as washing machines, spin dryers and refrigerators. Generally unsuitable for outdoor use or industrial applications.
Certification: HAR, ISO 9001.
Standard: EN 50525-2-21
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| 3183TRS0.75 | 0.75 | 6.95 | 26 | Black | Br,Bl,G/Y | 5, 10, 25, 50, 100 | Drills | |
| 3183TRS1.0 | 1 | 7.25 | 19.5 | Black | Br,Bl,G/Y | 5, 10, 25, 50, 100 | Power tools | |
| 3183TRS1.5 | 1.5 | 8.85 | 13.3 | Black | Br,Bl,G/Y | 5, 10, 25, 50, 100 | Heavy duty power tools | |
| 3183TRS2.5 | 2.5 | 10.5 | 7.98 | Black | Br,Bl,G/Y | 5, 10, 25, 50, 100 | Heavy duty power tools |
Ideal for hot environments such as irons.
Certification: ISO 9001
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| 2043Y1.0 | 1 | White | Br,Bl,G/Y | 2.5 | Small domestic appliances including electric irons and kettles |
