4 Core Alarm Cable ALARM CU
6 Core Alarm Cable ALARM CU

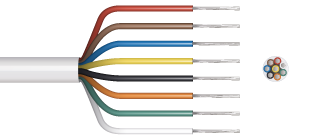

8 Core Alarm Cable ALARM CU
Coaxial RG59
Coaxial Low Loss COAXIAL
Coaxial PF100
Coaxial Satellite Cable CT100
4 Core 2 Pair Telephone Flex
6 Core 3 Pair Telephone Flex
8 Core 4 Pair Telephone Flex
13 Strand Figure 8 Speaker
79 Strand Figure 8 Twin Speaker
Bell Wire
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| ALARM CU 4 CORE | 4 | 3.8 | n/a | – | White | Bl,Bk,Red,Yel | 100 | Indoor alarm systems |
Alarm cables for indoor alarm systems. Our alarm cables are 7x20mm tinned copper wire with PVC insulation according to BS 4737. The cores are twisted in layers. All cables have a white PVC outer jacket.
Certification: ISO 9001.
Standard: BS 4737
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| ALARM CU 6 CORE | 6 | 4.4 | n/a | – | White | Bl,Bk,Gr,Red,Yel,Wh | 10, 25, 50, 100 | Indoor alarm systems |
Alarm cables for indoor alarm systems. Our alarm cables are 7x20mm tinned copper wire with PVC insulation according to BS 4737. The cores are twisted in layers. All cables have a white PVC outer jacket.
Certification: ISO 9001.
Standard: BS 4737
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| ALARM CU 8 CORE | 8 | 4.8 | n/a | – | White | Br,Bl,Bk,Gr,Red,Yel,Wh,Or | 100 | Indoor alarm systems |
Used for indoor distributions of CATV networks and connections of SMATV systems which require low attenuations and high screening. 44 Ohm.
Certification: ISO 9001
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| COAXIAL-RG59 | 0.72 | 6.15 | n/a | Inner: 44 | White | N/A | 100 | Low-power video and RF signal connections |
High quality RG Type Coaxial cables, 50 or 75 Ohm is suitable for many applications, including low power video, video signal, and broadband signals. Many types are available in Duct Grade, LSF or LSZH versions.
Certification: ISO 9001.
Standard: EN 50117
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| COAXIAL | – | – | n/a | Inner: 22.10. Outer: 14.30 | White, Brown | N/A | 5, 10, 20, 25, 50, 100 |
High quality RG Type Coaxial cables, 50 or 75 Ohm is suitable for many applications, including low power video, video signal, and broadband signals. Many types are available in Duct Grade, LSF or LSZH versions.
Certification: ISO 9001
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| PF100 | 1.02 | 6.8 | n/a | White, Black, Brown | N/A | 20, 25, 50, 100 | Professional TV and CCTV systems, satellite, terrestrial and cable TV |
Used for indoor distributions of CATV networks and connections of SMATV systems which require low attenuations and high screening. 75 Ohm.
Certification: CAI Approved, ISO 9001.
Standard: EN 50117
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| SAT | 1.02 | 6.8 | n/a | Inner: 22.10. Outer: 13.50 | Black, White | N/A | 5, 10, 20, 25, 100, 250, 500 |
Cables primarily designed for the interconnection of telephone equipment which is installed indoors. In addition these cables may be used for the interconnection of other communication and control equipment or low level signalling applications.
Certification: ISO 9001
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| TEL4 | n/a | White | N/A | 10, 25, 100 | Telephones |
Cables primarily designed for the interconnection of telephone equipment which is installed indoors. In addition these cables may be used for the interconnection of other communication and control equipment or low level signalling applications.
Certification: ISO 9001
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| TEL6 | n/a | White | N/A | 100 |
Cables primarily designed for the interconnection of telephone equipment which is installed indoors. In addition these cables may be used for the interconnection of other communication and control equipment or low level signalling applications.
Certification: ISO 9001
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| TEL8 | n/a | White | N/A | 100 |
For audio installations.
Certification: ISO 9001
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| SP13 | 13 x 0.2 | n/a | White, White Black Line, Grey Black Line | N/A | 7.5, 10, 25, 100 | Audio Installations |
For audio installations.
Certification: ISO 9001
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| SP17 | 79 x 0.2 | n/a | White | N/A | 7.5, 10, 25 | Audio Installations |
For door bell and buzzer systems.
Certification: ISO 9001
| PRODUCT CODE | CORE MM | DIAMETER MM | CURRENT AMPS | RESISTANCE OHM/KM | OUTER SHEATH COLOUR | INNER CORE COLOUR | LENGTH | USAGE |
|---|---|---|---|---|---|---|---|---|
| BELL WIRE | White | N/A | 10, 16.5, 25, 100 | Door bell and buzzer systems |
